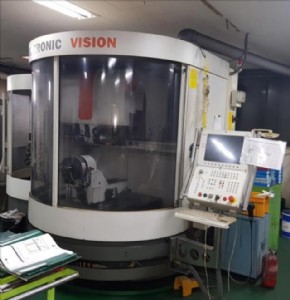

universal tool【敏感詞】cutter grinder萬能工具磨床（數控）

made by walter,德國瓦爾特制造,型號helitronic vision,  出廠日期year 2005年, 控制系統control hmc600

deｓｃｒｉｐｔion描述:

suitable for grinding【敏感詞】manufacturing of tools of all kinds.適合生產及修磨各種木工及金屬加工刀具

specifications規格:

hmc600控制系統，working range 工作范圍:longitudinal traverse 縱向行程(x- axis) 480 mm, vertical traverse 垂直行程(y-axis) 320 mm, cross traverse 交叉行程(z-axis) 700 mm, rotary table swivelling range 回轉角度(c-axis) +/- 200°, work head spindle 工件座規格iso 50, max. diameter of workpiece 最大工件直徑320 mm, max. length of workpiece for peripheralgrinding 最大磨削工件周邊長度370 mm, max. length of workpiece for face grinding 最大工件端面磨削長度320 mm, length of workpiece for peripheralgrinding 最大磨削工件周邊長度370 mm,precision in linear resolution 線性定位精度0.0001 mm, in radial resolution 圓弧定位精度0.0001°;max. dia. of wheel 最大砂輪直徑200 mm, peak performance grinding spindle 磨削軸峰值功率30 kw,grinding spindle speed 磨削軸速度范圍0 - 10.000 rpm. connected load approx. 裝機容量約35 kw (400 volts/ 50 hz), weight approx.重量約8.400 kg, dimensions 體積w x d x h = 3650 x 2490 x 2510 mm, colour 顏色grey ral 9003 / 7011.

accessories附件:

軟件待落實

toolstudio 2.0 standard【敏感詞】advanced license標準和領先的toolstudio 2.0

automatic fire extinguishing system, 自動滅火系統

probe,探針
